Bus & Truck Radiators

Our Heavy Duty radiators are ready to install and are available for the most popular heavy truck and bus models on the road. Our bolt-on, soldered and PTA radiators offer superior thermal and durability performance, and are designed to fit right the first time. Truck Tough® provides coverage on nearly 200 models.

Sort by

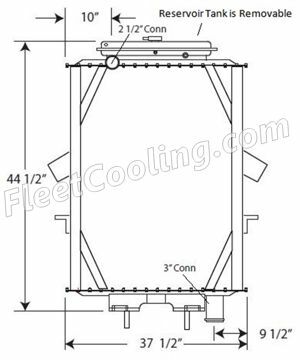

Peterbilt Radiator - Bolt On Tank TR7396

$1,649.83 $1,716.75

SKU	TR7396
OE Core Size	36 1/4 x 34 1/2 x 2 1/4
Connections	Inlet 2 1/2 & Outlet 3
FPI	14
Rows	3
Notes	TR7396 is 3 row Std Cooling. See TR7396HD for 4 row HD Cooling. Surge Tank is bolted on and Removable. See TR7396WOT for unit without Surge Tank. 1998 or older may need to reuse OE side channels.
	See TR7474 if bottom connection is needed on the drivers side. Bottom pin mounts are offset on TR7396, see TR7482 if bottom pin mounts needed are centered.

Peterbilt Radiator - Bolt On Tank TR7396HD

$1,997.84 $1,653.75

SKU	TR7396HD
OE Core Size	36 1/4 x 34 1/2 x 2 5/8
Connections	Inlet 2 1/2 & Outlet 3
FPI	14
Rows	4
Notes	TR7396HD is 4 row HD Cooling. See TR7396 for 3 row Std Cooling. Surge Tank is bolted on and Removable. See TR7396WOT for 3 row without Surge Tank. 1998 or older may need to reuse OE side channels.
	See TR7474 if bottom connection is needed on the drivers side. Bottom pin mounts are offset on TR7396HD, see TR7482 if bottom pin mounts needed are centered.

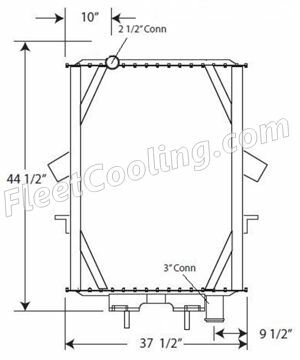

Peterbilt Radiator - Bolt On Tank TR7396WOT

$1,695.23 $1,573.42

SKU	TR7396WOT
OE Core Size	36 1/4 x 34 1/2 x 2 1/4
Connections	Inlet 2 1/2 & Outlet 3
FPI	14
Rows	3
Notes	TR7396WOT is without Surge Tank, see TR7396 for unit with Surge Tank. 1998 or older may need to reuse OE side channels.

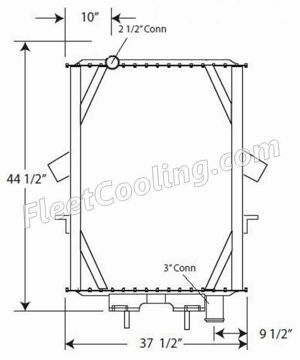

Peterbilt Radiator - Bolt On Tank TR7396WOTHD

$1,914.62 $1,677.38

SKU	TR7396WOTHD
OE Core Size	36 1/4 x 34 1/2 x 2 5/8
Connections	Inlet 2 1/2 & Outlet 3
FPI	14
Rows	4
Notes	TR7396WOTHD is without Surge Tank, see TR7396HD for unit with Surge Tank. 1998 or older may need to reuse OE side channels.

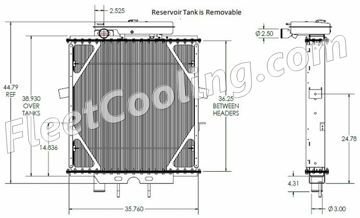

Peterbilt Radiator - Bolt On Tank TR7474

$2,289.55 $1,907.32

SKU	TR7474
OE Core Size	36 1/4 x 34 1/2 x 2 1/4
Connections	Inlet 2 1/2 & Outlet 3
FPI	14
Rows	3
Notes	Surge Tank is bolted on and Removable to fit with or without Surge Tank Applications. 1998 or older may need to reuse OE side channels
	See TR7396 if bottom connection is needed on the passenger side. Bottom pin mounts are offset on TR7474, wont fit applications with centered pin mounts.

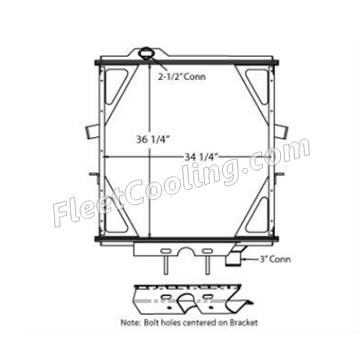

Peterbilt Radiator - Bolt On Tank TR7482

$1,695.23 $1,570.28

SKU	TR7482
OE Core Size	36 1/4 x 34 1/2 x 2 1/4
Connections	Inlet 2 1/2 & Outlet 3
FPI	14
Rows	3
Notes	For external Surge Tank Applications only, no surge tank included. 1998 or older may need to reuse OE side channels
	Bottom pin mounts are centered, see TR7396 if bottom pin mounts needed are offset.
