Peterbilt Radiator - Bolt On Tank TR7396

Are you visiting from outside the US? Click here for important shipping information!

SKUTR7396

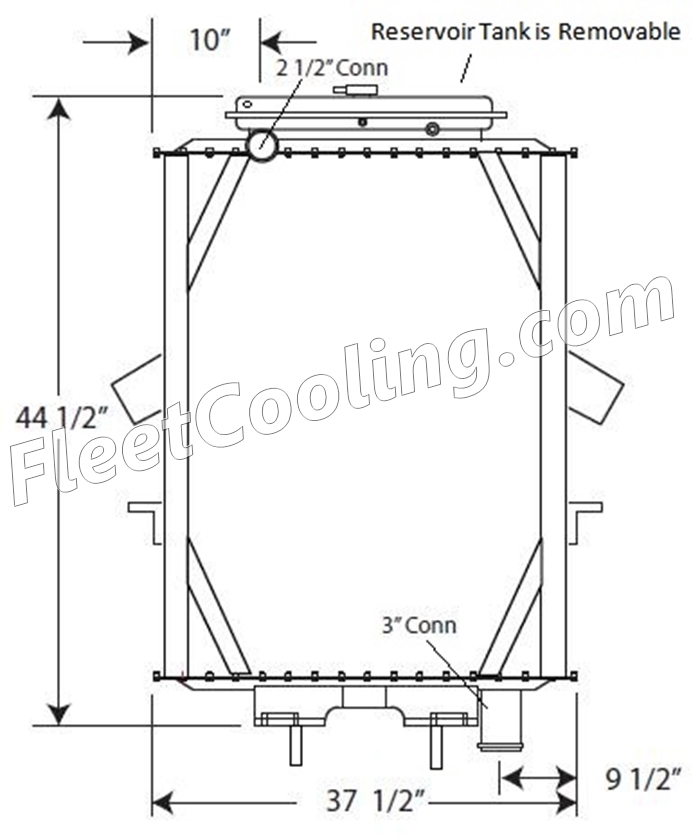

OE Core Size36 1/4 x 34 1/2 x 2 1/4
ConnectionsInlet 2 1/2 & Outlet 3
FPI14
Rows3
NotesTR7396 is 3 row Std Cooling. See TR7396HD for 4 row HD Cooling. Surge Tank is bolted on and Removable. See TR7396WOT for unit without Surge Tank. 1998 or older may need to reuse OE side channels.
 See TR7474 if bottom connection is needed on the drivers side. Bottom pin mounts are offset on TR7396, see TR7482 if bottom pin mounts needed are centered.

Available Pickup Locations


If you need to pickup your part, this table will show you where we have them available.


We have items marked "Limited Stock", but please call to confirm availability.

Availability: In stock
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Others: $1,649.83
$1,522.82

Now in stock! New Radiator with Bolt On Tank for Peterbilt Applications. SKU: TR7396. OE Core Size: 36 1/4 x 34 1/2 x 2 1/4. Connections: Inlet 2 1/2 & Outlet 3. FPI: 14. Rows: 3. Notes: TR7396 is 3 row Std Cooling. See TR7396HD for 4 row HD Cooling. Surge Tank is bolted on and Removable. See TR7396WOT for unit without Surge Tank. 1998 or older may need to reuse OE side channels.. &nbsp: See TR7474 if bottom connection is needed on the drivers side. Bottom pin mounts are offset on TR7396, see TR7482 if bottom pin mounts needed are centered..Surge tank is removable to fiy the Short hood with firewall mounted surge tank. Fits the following OEM numbers: 0706657A011, 0706657A012, 0706657A013, 0706657A032, 0706657A033, 0706657A040, 21013701, 21013702, 239208, 239310, 41036, 4210322, 4210336, 5580363, 5580364, 5580365, 770006, 7700064, 770006BT, 7706, ABPN2021013702, BT1100R, BT1176, BTC1100R, BTC1176, CVT80363, CVT80365, CVTM80363, CVTU80363, CVTU80364, CVTX80364, FLX000512, HDC010017, P3, P3LX, P4, P4H, P4LX, P4N, PET06, PET10, RADPE102, S7706, SCSI239208, SCSI239310, SRM8036, SRM8036N, TR9208, TR9310, VT80364, VTU80363, 230935. No core charge! TSM #: 0437396

PRICE BREAKS - Pricing waiver possible upon registration
Quantity
2+
5+
Price
$1,384.38
$1,330.24
Products specifications
Core Size36 1/4 x 34 1/2 x 2 1/4
OEM Numbers0705343, 0705678A001, 0705678A002, 0705678A011, 0705716A001, 0705716A002, 0705716A003, 0705716A004, 0705716A005, 0705716A007, 0705716A008, 0705716A009, 0705716A010, 0705716A011, 0705716A012, 0705716A013, 0705716A014, 0706657A007, 0706657A011, 0706657A012, 0706657A013, 0706657A014, 0706657A030, 0706657A031, 0706657A032, 0706657A033, 0706657A037, 0706657A040, 0750676A008, 076657A011, 076657A013, 076657A014, 076657A032, 076657A038, 076657A040, 10461059, 1720001, 1720006, 1A16770, 21013701, 21013702, 21013702A, 239208, 239310, 41036, 4210322, 4210336, 437396, 5580363, 5580364, 5580365, 770006, 7700064, 770006BT, 770006PH, 770010, 770030, 7706, 8036, ABPN2021013701, ABPN2021013702, BT1100R, BT1100R4, BT1102R4, BT1176, BTC1100R, BTC1100R4, BTC1102R4, BTC1176, CVT80363, CVT80365, CVTM80363, CVTU80363, CVTU80364, CVTX80364, FLX000512, FLX000524, HDC010017, HDC010017SK, HDC010032SK, HDC010181, HDC010181SK, HDC010593, HDC010653, HDC010769, HDC011010, LPP392, LPP492, P3, P3CTX, P3LX, P4, P4CTX, P4H, P4LX, P4N, PET06, PET10, PET14, PET148, R9208, R9310, RADPE102, S7706, SCSI239208, SCSI239310, SRM8036, SRM8036N, SRM8036NSPL, SRW8036, TR9208, TR9310, VT80364, VTU80363
Year2007, 2006, 2005, 2004, 2003, 2002, 2001, 2000, 1999, 1998, 1997, 1996, 1995, 1994, 1993, 1992, 1991, 1990, 1989, 1988, 1987, 1986
MakePeterbilt
Model357, 377, 378, 379, 385
