Peterbilt Radiator - Bolt On Tank TR7396HD

Are you visiting from outside the US? Click here for important shipping information!

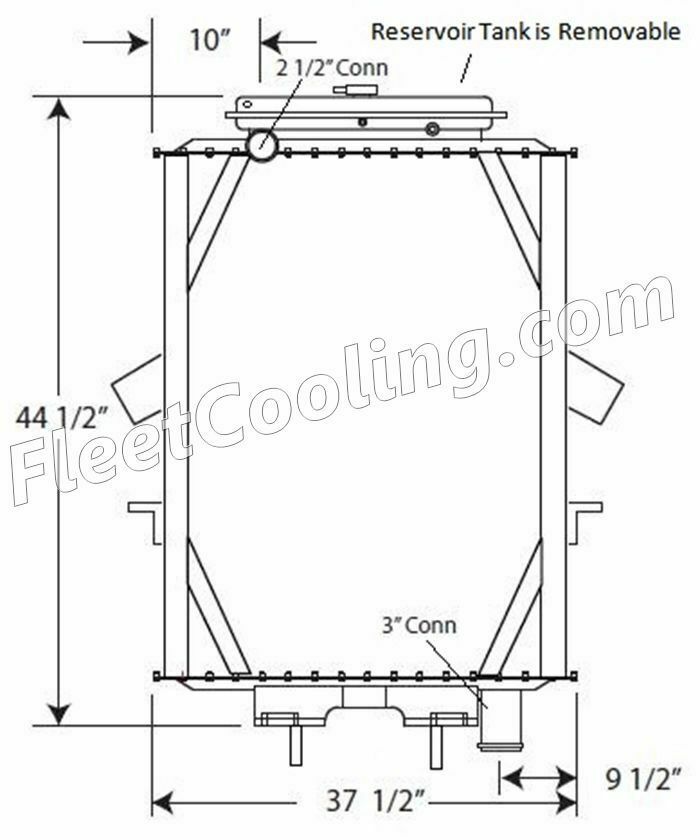

OE Core Size36 1/4 x 34 1/2 x 2 5/8
ConnectionsInlet 2 1/2 & Outlet 3
NotesTR7396HD is 4 row HD Cooling. See TR7396 for 3 row Std Cooling. Surge Tank is bolted on and Removable. See TR7396WOT for 3 row without Surge Tank. 1998 or older may need to reuse OE side channels.
 See TR7474 if bottom connection is needed on the drivers side. Bottom pin mounts are offset on TR7396HD, see TR7482 if bottom pin mounts needed are centered.

Available Pickup Locations

If you need to pickup your part, this table will show you where we have them available.

We have items marked "Limited Stock", but please call to confirm availability.

Availability: In stock
Free shipping
Products specifications
OEM Numbers 0705343, 0705678A001, 0705678A002, 0705678A011, 0705716A001, 0705716A002, 0705716A003, 0705716A004, 0705716A005, 0705716A007, 0705716A008, 0705716A009, 0705716A010, 0705716A011, 0705716A012, 0705716A013, 0705716A014, 0706657A007, 0706657A011, 0706657A012, 0706657A013, 0706657A014, 0706657A030, 0706657A031, 0706657A032, 0706657A033, 0706657A037, 0706657A040, 0750676A008, 076657A011, 076657A013, 076657A014, 076657A032, 076657A038, 076657A040, 10461059, 1720001, 1720006, 1A16770, 21013701, 21013702, 21013702A, 239208, 239310, 41036, 4210322, 4210336, 437396, 5580363, 5580364, 5580365, 770006, 7700064, 770006BT, 770006PH, 770010, 770030, 7706, 8036, ABPN2021013701, ABPN2021013702, BT1100R, BT1100R4, BT1102R4, BT1176, BTC1100R, BTC1100R4, BTC1102R4, BTC1176, CVT80363, CVT80365, CVTM80363, CVTU80363, CVTU80364, CVTX80364, FLX000512, FLX000524, HDC010017, HDC010017SK, HDC010032SK, HDC010181, HDC010181SK, HDC010593, HDC010653, HDC010769, HDC011010, LPP392, LPP492, P3, P3CTX, P3LX, P4, P4CTX, P4H, P4LX, P4N, PET06, PET10, PET14, PET148, R9208, R9310, RADPE102, S7706, SCSI239208, SCSI239310, SPI21013702, SRM8036, SRM8036N, SRM8036NSPL, SRW8036, TR9208, TR9310, VT80364, VTU80363
Year 2007
Year 2006
Year 2005
Year 2004
Year 2003
Year 2002
Year 2001
Year 2000
Year 1999
Year 1998
Year 1997
Year 1996
Year 1995
Year 1994
Year 1993
Year 1992
Year 1991
Year 1990
Year 1989
Year 1988
Year 1987
Year 1986
Make Peterbilt
Model 357
Model 377
Model 378
Model 379
Model 385
