Peterbilt Radiator - Bolt On Tank TR7474

Are you visiting from outside the US? Click here for important shipping information!

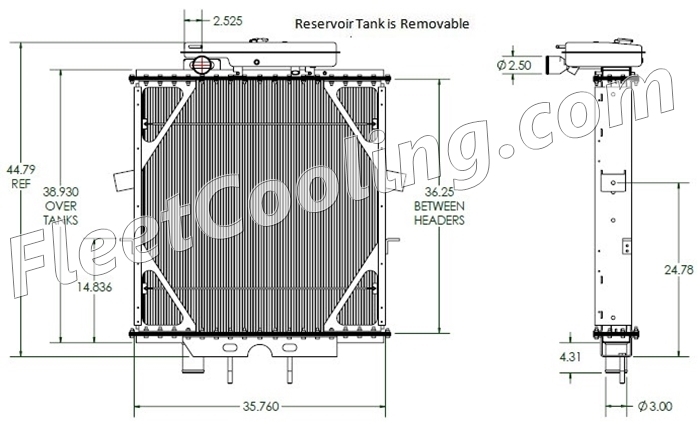

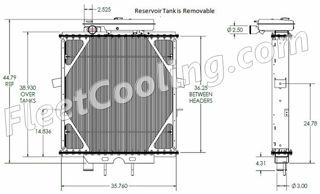

OE Core Size36 1/4 x 34 1/2 x 2 1/4
ConnectionsInlet 2 1/2 & Outlet 3
NotesSurge Tank is bolted on and Removable to fit with or without Surge Tank Applications. 1998 or older may need to reuse OE side channels
 See TR7396 if bottom connection is needed on the passenger side. Bottom pin mounts are offset on TR7474, wont fit applications with centered pin mounts.

Available Pickup Locations

If you need to pickup your part, this table will show you where we have them available.

Buyers Guide

This table shows the applications this part fits. It is not intended to be a definitive lookup. Please refer to the OEM number.

Availability: This item is currently on back order. Please call (800) 721-1810 for more information.
Products specifications
Make Peterbilt
Core Size 36 1/4 x 34 1/2 x 2 1/4
OEM Numbers 0706657A042, 770037, 770037BT, 770040, 770040BT, P3LPD, P4LPD
