Detroit Diesel Radiator - Bolt On Tank TR7962SC

Are you visiting from outside the US? Click here for important shipping information!

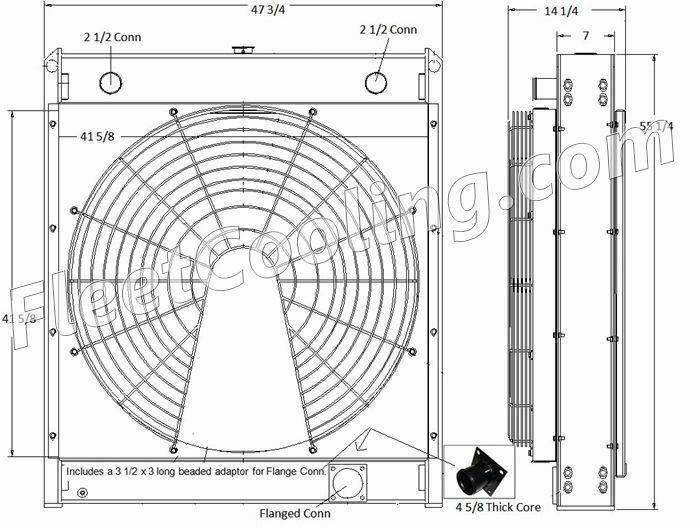

OE Core Size41 5/8 x 41 5/8 x 4 5/8
ConnectionsInlet (2) 2 1/2 & Outlet Flange
Fin CoatingSolder Coated
Front Guard/Grill?Yes
Fan Shroud?Yes
Fan Guard?Yes
Notes2 Inlet Connections are 2 1/2 diameter and 33 inches apart
 Outlet Block Connection 4 1/2 x 4 1/2. Includes 3 1/2 x 3 long beaded adaptor.

Available Pickup Locations

If you need to pickup your part, this table will show you where we have them available.

Buyers Guide

This table shows the applications this part fits. It is not intended to be a definitive lookup. Please refer to the OEM number.

Availability: This item is currently on back order. Please call (800) 721-1810 for more information.
Products specifications
Make Detroit Diesel
Engine Size 12V-71
Core Size 41 5/8 x 41 5/8 x 4 5/8
OEM Numbers 5123783
