Detroit Diesel Radiator - Bolt On Tank TR7919G

Are you visiting from outside the US? Click here for important shipping information!

OE Core Size41 5/8 x 41 5/8 x 4 5/8
ConnectionsInlet (2) 2 1/4 & Outlet Flange
Fin CoatingSolder Coated
Front Guard/Grill?Yes
Fan Shroud?Yes
Fan Guard?Yes

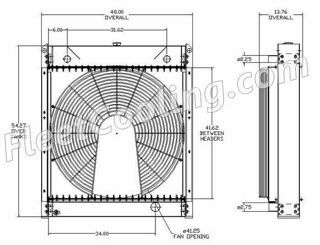

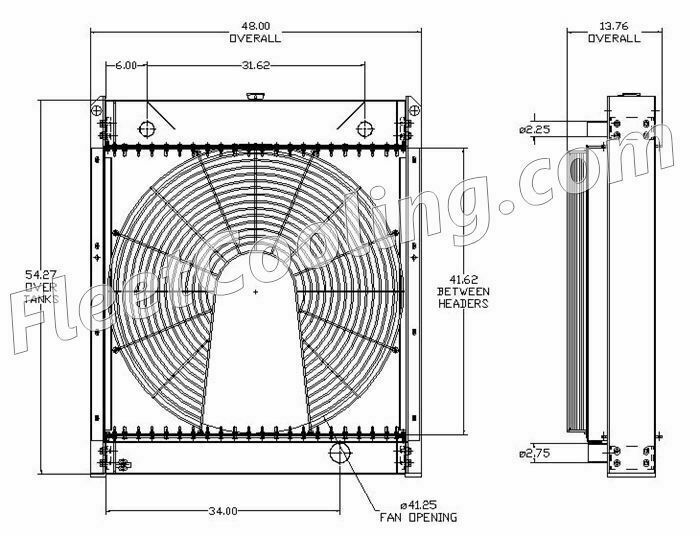

Picture NotesPicture of TR7917. Same with the exceptions of Notes 1
Notes2 Inlet Connections are 2 1/4 diameter and 22 inches apart
 Outlet Block Connection 4 1/2 x 4 1/2. Includes 2 3/4 x 3 beaded adaptor.
Products specifications
MakeDetroit Diesel
Engine Size8V-92
Core Size41 5/8 x 41 5/8 x 4 5/8
Engine Size8V-71 HD
OEM NumbersNA
