Kenworth Radiator - Bolt On Tank TR7598HD

Are you visiting from outside the US? Click here for important shipping information!

SKU	TR7598HD

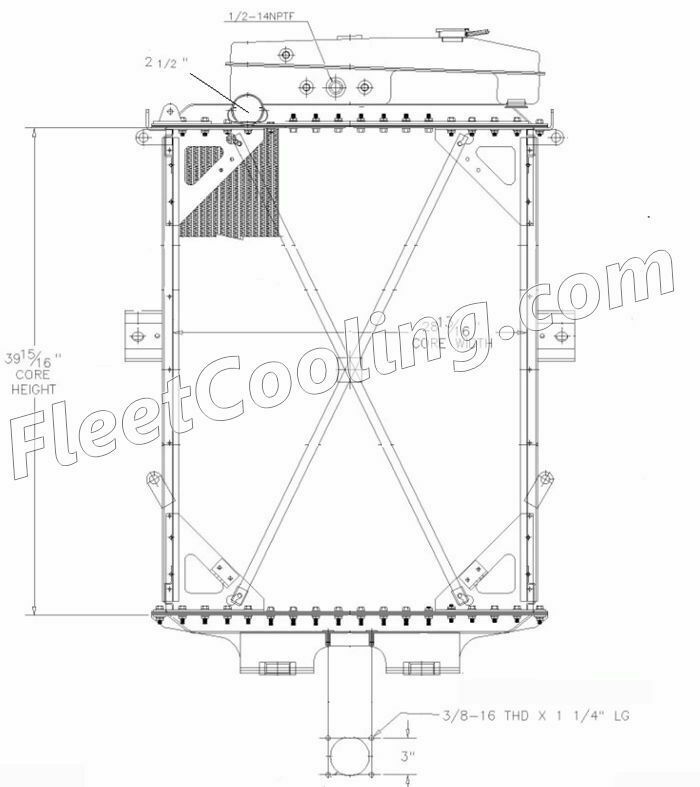

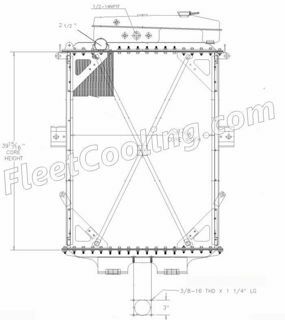

OE Core Size	40 x 28 13/16 x 2 5/8
Connections	Inlet 2 1/2 & Outlet 3
FPI	14
Rows	4
Notes	TR7598HD is 4 row HD Cooling. See TR7598 for 3 row Std Cooling.
	Inlet is 8 3/16" in from edge of tank. Outlet center to center bolt holes is 3" front to back, and 3 1/2" from side to side.

Available Pickup Locations

If you need to pickup your part, this table will show you where we have them available.

We have items marked "Limited Stock", but please call to confirm availability.

Availability: This item is currently on back order. Please call (800) 721-1810 for more information.

Others: $1,786.01

Our Price: $1,938.82

Qty:

Now in stock! New Radiator with Bolt On Tank for Kenworth Applications. SKU: TR7598HD. OE Core Size: 40 x 28 13/16 x 2 5/8. Connections: Inlet 2 1/2 & Outlet 3. FPI: 14. Rows: 4. Notes: TR7598HD is 4 row HD Cooling. See TR7598 for 3 row Std Cooling.. &nbsp: Inlet is 8 3/16" in from edge of tank. Outlet center to center bolt holes is 3" front to back, and 3 1/2" from side to side.. Fits the following OEM numbers: 1A020259, 1A020448X3635, 21012505, 21012505A, 239098, 239327, 239337, 2400092, 2723B, 5580483, 5580484, 5580485, 650007, 650007BT, 650012, 650012BT, 6507, ABPN2021012505, BT1111R, BTC1111R, CVT80483, CVT80484, CVT80485, CVTM80483, CVTU80483, CVTU80484, FLX000319, FLX000320, HDC010081, HDC010093, HDC010216, HDC010406, KEN09, KEN18, R0437598, RADKE104, RC2358, S6507, SCSI239098, SCSI239327, SCSI239337, SRM8048, TR9098, TR9327, TR9337, W9003, W9004, W93, W94, W95, X510201, X51021, X560208, 231442. No core charge! TSM #: 0437598HD

Products specifications

OEM Numbers	1720204, 1A020259, 1A020448X3635, 21012505, 21012505A, 239098, 239327, 239337, 2400092, 2723B, 437391, 437598, 5580483, 5580484, 5580485, 619RA007, 650007, 650007BT, 650012, 650012BT, 6507, 8048, ABPN2021012505, BT1111R, BTC1111R, CIE80485, CR9327, CR9337, CVT80483, CVT80484, CVT80485, CVTM80483, CVTU80483, CVTU80484, E4313, FLTRKW908807, FLX000319, FLX000320, HDC010081, HDC010093, HDC010093SK, HDC010216, HDC010216SK, HDC010406, HDC010541, HDC010607, HDC010647, KEN09, KEN18, R0437598, R9337, RADKE104, RC2358, S6507, SC239098, SC239327, SC239337, SCSI239098, SCSI239327, SCSI239337, SPI21012505, SRM8048, SRM80484N, SRW8048, TR9098, TR9327, TR9337, W9003, W9004, W93, W94, W94H, W94LX, W94N, W95, W95H, W95N, X510201, X51021, X56008, X560208
Year	2007, 2006, 2005, 2004, 2003, 2002, 2001, 2000, 1999, 1998, 1997, 1996, 1995, 1994, 1993, 1992, 1991, 1990, 1989, 1988
Make	Kenworth
Model	W900
