Freightliner Radiator - Plastic Tank TR7424P

Are you visiting from outside the US? Click here for important shipping information!

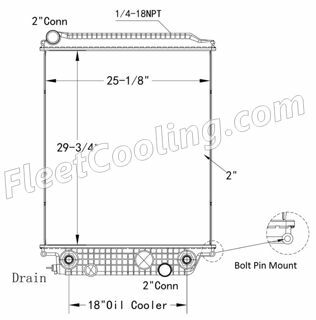

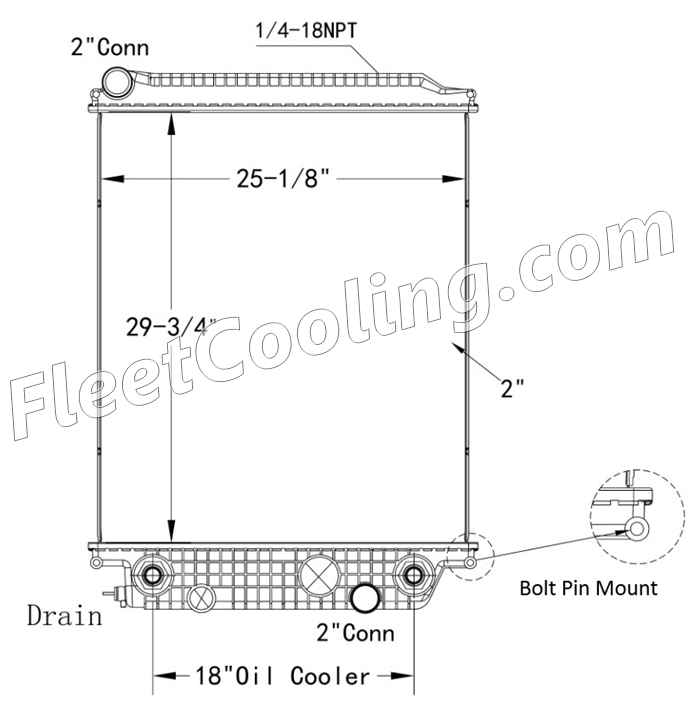

OE Core Size29 5/8 x 25 1/2 x 2 1/4
ConnectionsInlet 2 & Outlet 2
EOC & O/C Notes18" oil cooler
NotesSee TR7424PF for unit with frame. TR7424P has Bolt/Pin mounting design.
 See TR7290P if bottom mounting is a Hi-Low Screw design.

Available Pickup Locations

If you need to pickup your part, this table will show you where we have them available.

Buyers Guide

This table shows the applications this part fits. It is not intended to be a definitive lookup. Please refer to the OEM number.

Availability: In stock
Products specifications
Make Freightliner
Core Size 29 5/8 x 25 1/2 x 2 1/4
OEM Numbers 1003747, 1003748, 1003748AS, 1004036, 1004036A, 1004036AS, 1004306A, 1040292, 1040293, 1040293AS, 1040506A, 1040506AS, 1050206, 1050207, 1050207AS, 1050618A, 1050618AS, 1102618, 1102619, 1102619AS, 1102906A, 1102906AS, 201RA021NV, 201RA021NVWF, 238619, 238740, 310081, 310081PT, 310081ST, 310081WF, 437424, 437424P, 437424PF, FRE37, HD9256, HDC010883, HDC010883P, HDC010883PAF, HDC010883PF, LT9256, SC238619, SCSI238619, SPI20011721, VAB1003747, VAB1003748, VAB1004036, VAB1040292, VAB1040293, VAB1050206, VAB1050207, VAB1102618, VAB1102619
